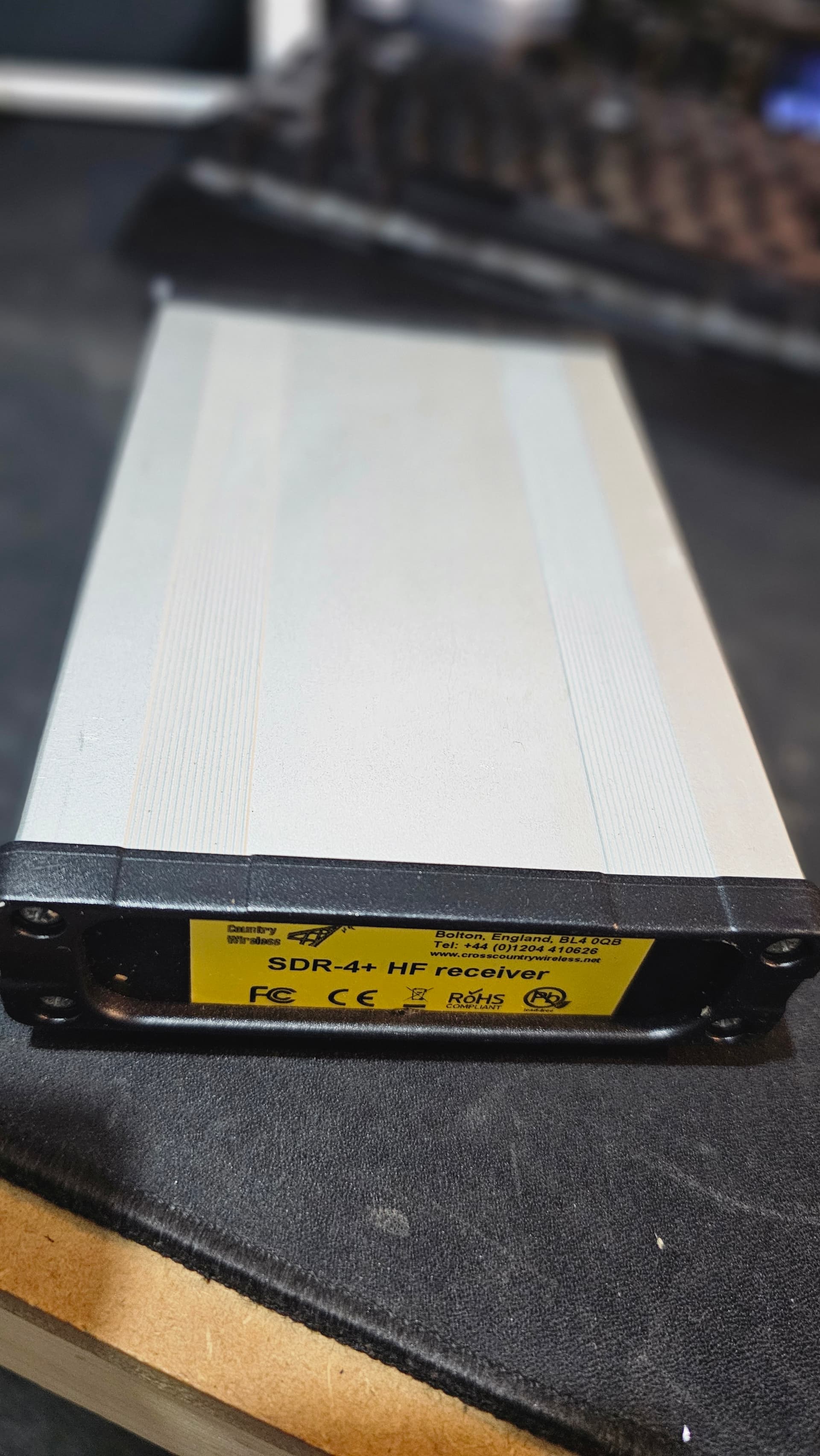

Tested and Works - SDR 4+ Receiver. - Dont know much about it.

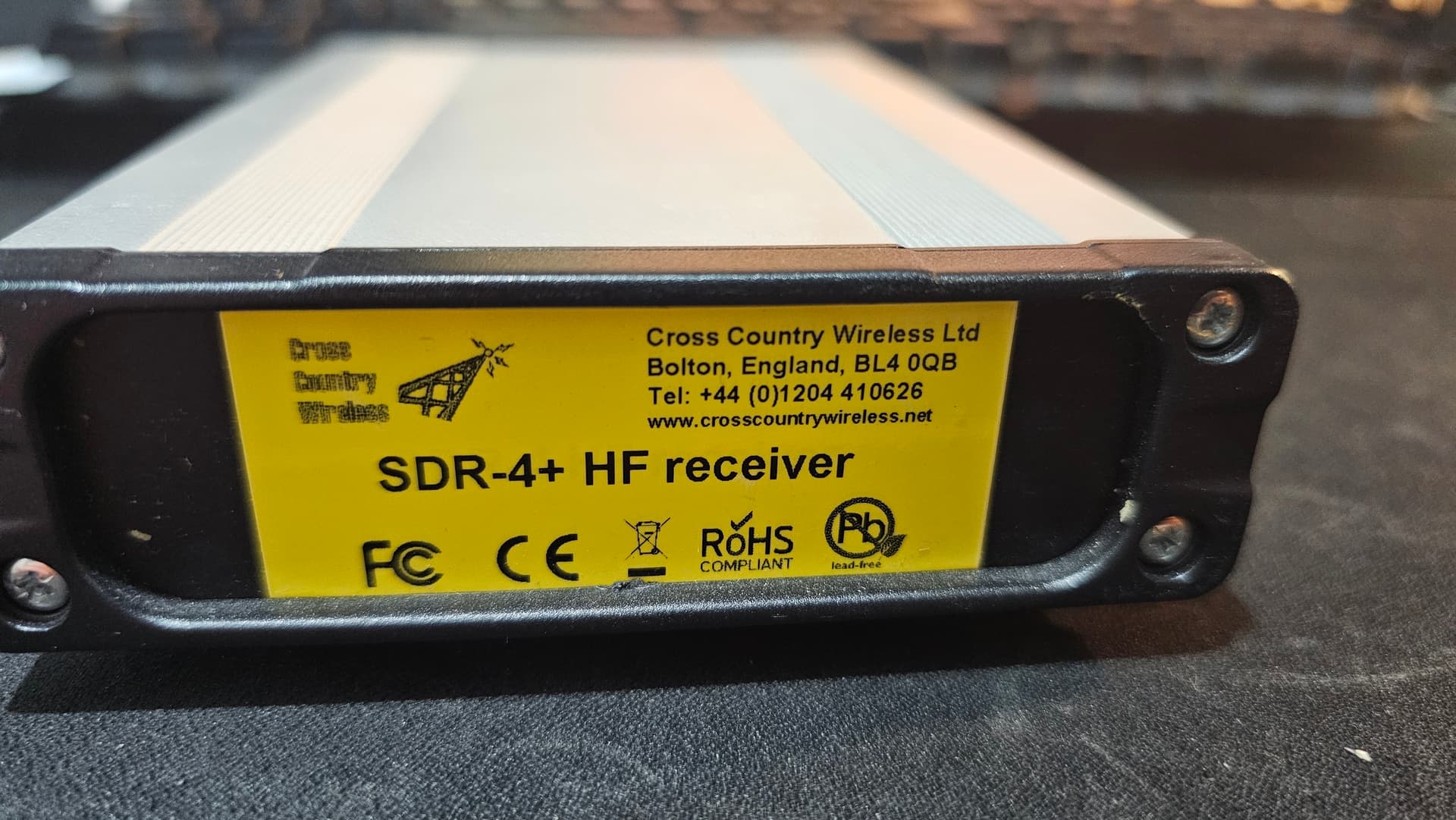

More info on their website here: Cross Country Wireless SDR-4+ general coverage receiver
The SDR-4+ is an HF general coverage SDR receiver covering from 0.85 to 70.5 MHz.
It has a Si570 low noise synthesised VFO, relay switched band pass filtering, ultra high IP3 E-PHEMT RF amplifier and a built-in USB soundcard.
Key design features include:

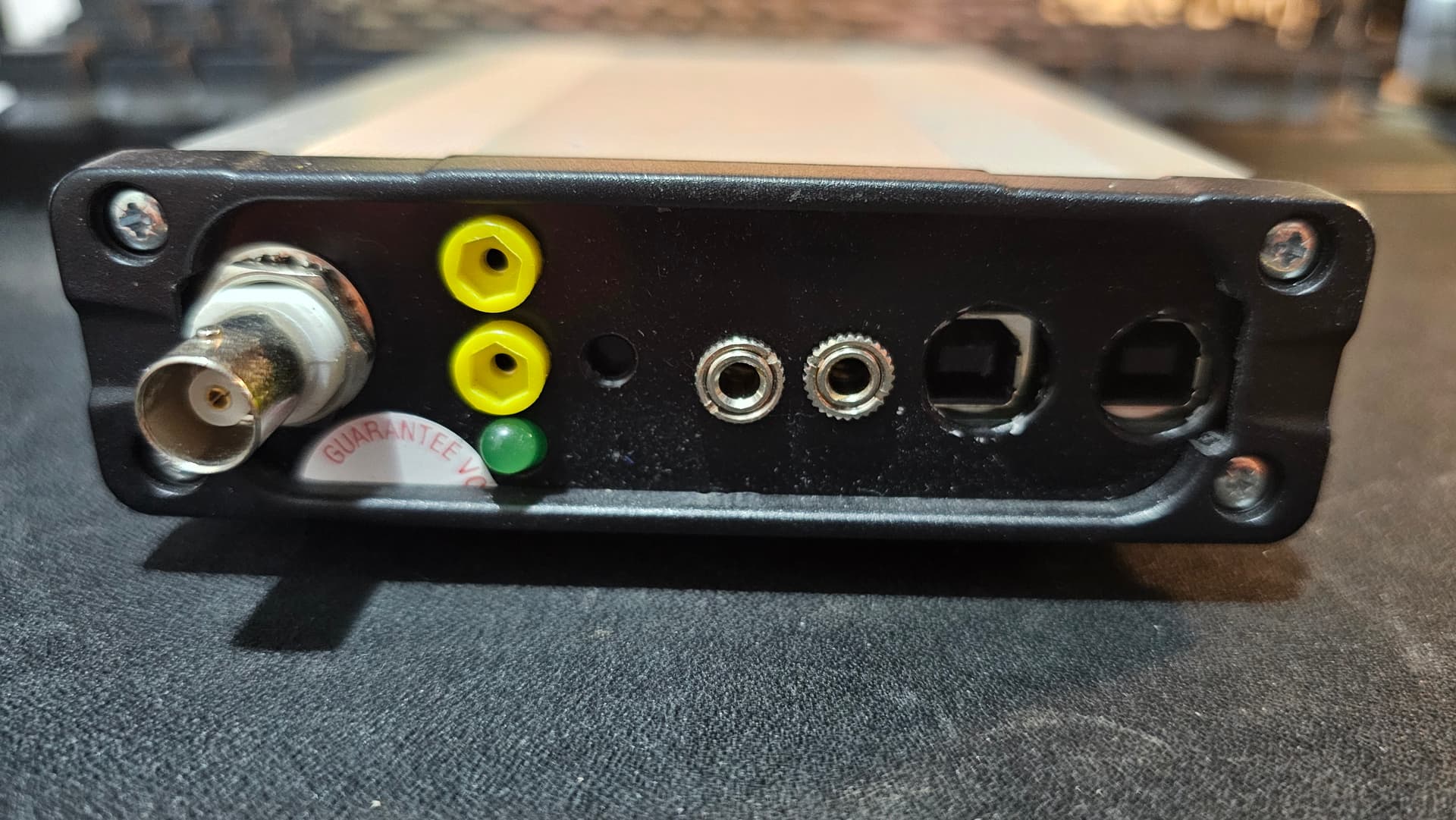

- Antenna isolation transformer with a 50 ohm impedance input for use with coax fed antennas
- Extra antenna isolation when the receiver is powered down
- Relay switched RF band pass filters
- RF amplifier now using a ultra high IP3 E-PHEMT RF amplifier in the receiver front end
- Built-in USB stereo soundcard
- 3.5mm soundcard audio output for headphone monitoring or connection to datamodes program
- 3.5mm IQ audio output for connection to external high sampling rate sound cards
- Built in a compact aluminium case 175 x 106 x 30 mm
£95 - Extra for p&p
Sold by M0LLC Lee. Inbox me or email me from QRZ
